Is there any requirement for the installation height of traffic signal lights?

Is there any requirement for the installation height of traffic signal lights?

In our daily life, traffic signal lights can be seen everywhere. Their use can effectively ease traffic conditions and ensure the smooth passage of roads. However, the use of traffic signal lights is not that simple, because whether in terms of design or installation, certain requirements need to be followed. So, is there any requirement for the installation height of traffic signal lights?

The answer is: Yes!

The requirements for the installation height of traffic signal lights are as follows:

I. Intersection signal lights:

The height should not be lower than 3m.

II. Pedestrian crossing signal lights:

The installation height is 2m to 2.5m.

III. Lane signal lights:

1. The installation height is 5.5m to 7m;

2. When installed on an overpass body, it shall not be lower than the clearance of the overpass body.

IV. Non-motor vehicle lane signal lights:

1. The installation height is 2.5m to 3m. In the case of using the signal light pole for guiding motor vehicle traffic to install non-motor vehicle signal lights in a cantilevered manner, the requirements of 7.4.2 shall be met;

2. The cantilever length of the non-motor vehicle signal lights should ensure that the non-motor vehicle signal lights are located above the non-motor vehicle lane.

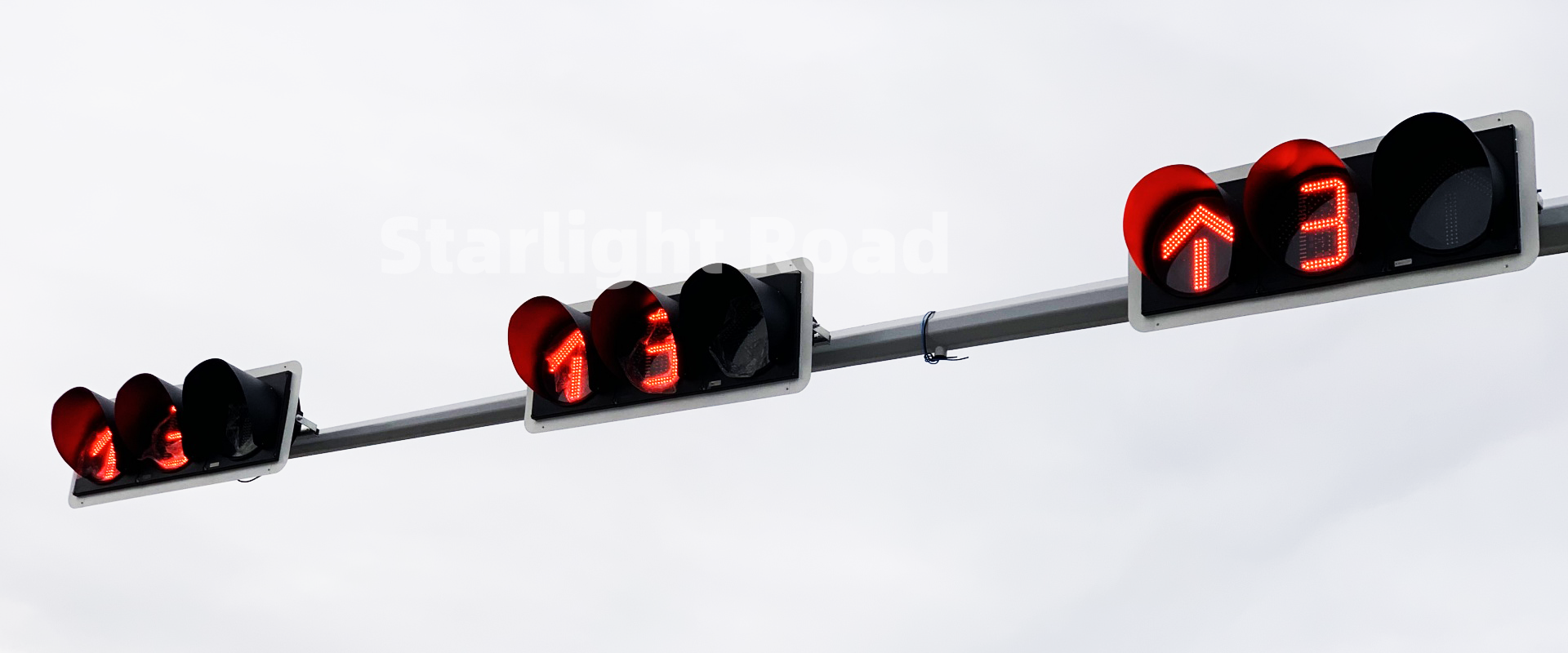

V. Motor vehicle signal lights, direction indicator signal lights, flashing warning signal lights and intersection signal lights:

1. When installed in a cantilevered manner, the height is 5.5m to 7m;

2. When installed in a columnar manner, the height should not be lower than 3m;

3. When installed on an overpass body, it shall not be lower than the clearance of the overpass body;

4. The longest cantilever length should not exceed the center of the innermost lane, and the shortest should not be less than the center of the outermost lane.

The content introduced above is some of the requirements for the installation height of traffic signal lights. Of course, for more specific details, it is still necessary to refer to the relevant standards.
