2 Section Clear Lens Pedestrian LED Traffic Signal Light Head
Lens: UV Stabilized PC clear lens
LED Performance: High-brightness 5mm DIP LEDs
Energy efficiency:Up to 90% of energy savings compared to incandescent bulbs
Life Cycle: Over 80,000 working hours
Durability: Highly durable, UV Stabilized polycarbonate housing
Design: Moisture and dust tight multi-layer seal protect lights from the elements
Modular: flexible configuration options: 1 to 5 sections, vertical, horizontal, and doghouse
Access: two-way & tool-free open system for convenience
Fixation System: L-shaped or arm-shaped mounting brackets
Compliance: CE, RoHS, EN12368, ISO9001
| 1. General Specifications | |||
| Material of Lens/Housing | UV-stabilized polycarbonate | ||
| Color of Housing | Black - standard, yellow, green, or custom colors | ||
| Operating Voltage | AC 185V-265V, 50/60Hz ( 80-135VAV, optional) | ||
| Power Factor | >0.90 at full load | ||
| Total Harmonic Distortion (THD): | <20% | ||
| Turn-On/Off Response | <75ms | ||
| Operating Temperature | -40⁰F to 176⁰F (-40⁰C to 74⁰C) | ||
| Operating Humidity | 5% to 95% RH （non-condensing） | ||
| Impact Resistance | IR3 | ||
| IP Rating | IP53 | ||
| 2. Optical Performance | |||
| Product Series | 300mm (12") | ||
| Dimensions (H×W×D) | 700x350x130mm | ||
| Viewing Distance | ≥300m | ||
| Viewing Angle | Horizontal ±30° | ||
| 3.LED module | |||
| • Red-Standing Men | • Green-Walking Pedestrian | • Green-Animated Walking Pedestrian | |
| Wavelength: | 625±5nm | 505±5nm | 505±5nm |
| Luminous Intensity | 4800-6800mcd | 8500-10500mcd | 8500-10500mcd |
| LED Quantity | 95pcs 5mm DIP Red | 54pcs 5mm DIP Green | 129pcs 5mm DIP Green |
| Rated power | ≤6W -Red | ≤4W -Green | ≤6W -Green |
Innovation in Traffic Signal Design
In this new wave of innovation in road signal lights, StarLight Road actively participates while staying true to our consistent modular design philosophy. Through meticulous research and development, we’ve crafted a high-quality modern traffic light that meets the diverse needs of today’s traffic systems.
High Visibility：Even light distribution with high-brightness 5mm LEDs.
Durable Design: UV Stabilized polycarbonate housing protects core components in harsh environments while maintaining performance.
Energy Efficient: Low-energy LED light source offers energy savings and high luminous efficiency for reliable urban traffic support.
Easy Maintenance: Modular design with a two-way & tool-free open system, meeting international standards for customer confidence.
Long-Lasting: Over 80,000 hours of operation.
Multiple LED Modules Compatible: Our LED traffic lights are designed for versatility, with compatibility across multiple LED modules for seamless integration and enhanced functionality.
Modular Innovation: Inheriting our modular design concept, the unique structure stands out. Using a polycarbonate tinted lens with an incandescent texture and an internal diffusing optical lens, it ensures even light distribution, stable signal angles, and clear pedestrian signals.
100% Real Modular Design: Each module operates independently and assembles easily, offering unmatched flexibility and customization.
Problem Solving: With strong flexibility and maintainability, our modular system quickly identifies and resolves issues within a minimal scope, restoring optimal performance with reduced impact on traffic and customers.

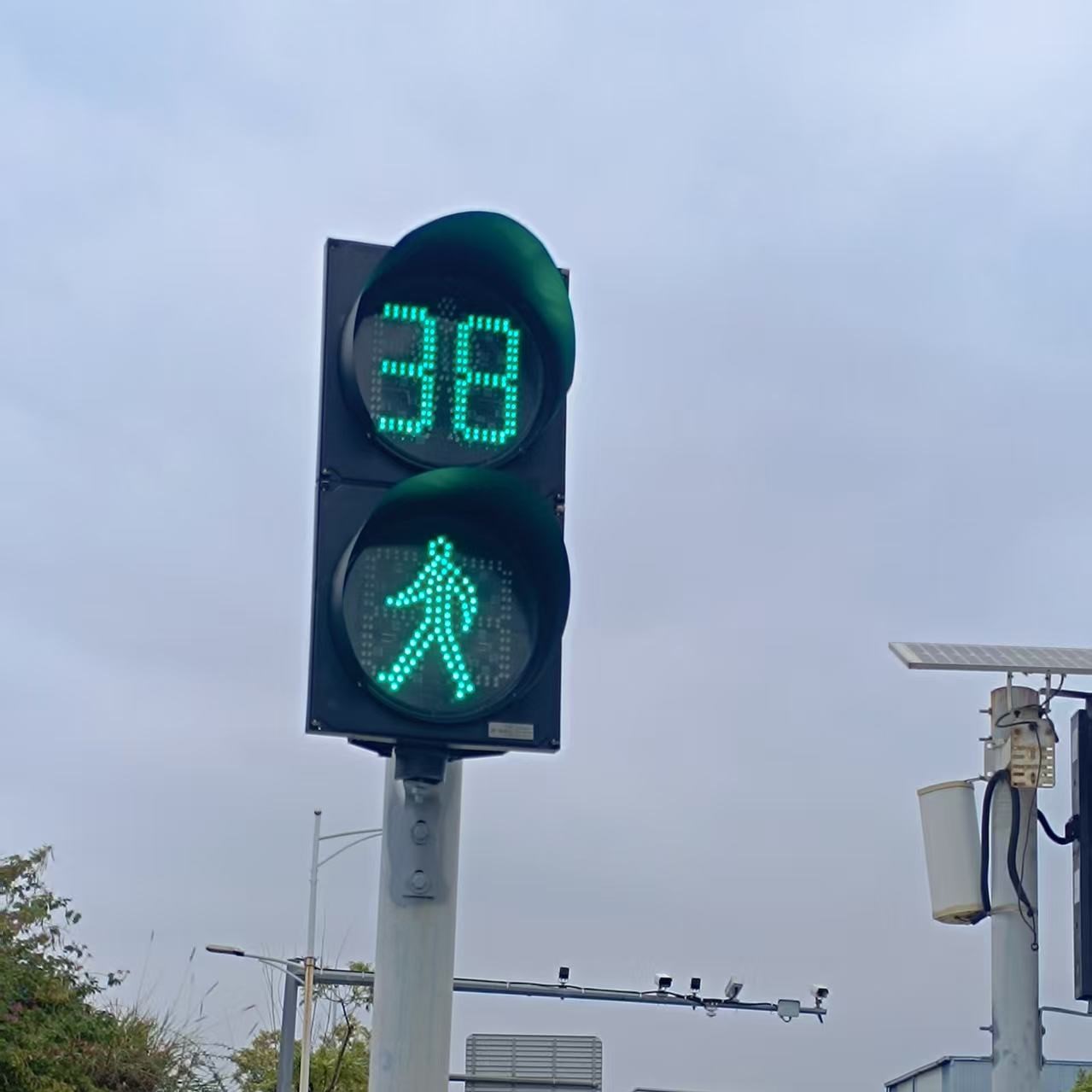

traffic light photo
Why Choose StarLight Road
Here’s why StarLight Road stands out:
- At the forefront of traffic signaling technology, we comply with CE, RoHS, EN12368, and ISO9001 standards.
- Our dedicated support team offers exceptional after-sales service.
- Our commitment to innovation drives continuous improvement and adoption of cutting-edge technologies.
- With a proven track record in traffic safety solutions, we deliver reliable, high-quality products.
As a flagship modern traffic light from StarLight Road, this product embodies our deep expertise and innovative vision in traffic signals. With superior quality, advanced technology, and dependable performance, it supports efficient, safe, and orderly urban transportation, serving as a cornerstone of modern intelligent traffic networks. StarLight Road remains dedicated to quality and innovation, providing top-tier solutions for the global transportation industry.
WHY CHOOSE US
AS YOUR LED TRAFFIC Signal Solution MANUFACTURER?
Your Trusted Partner in Traffic Signal Solutions-Manufacturing Quality Signals Since 2013,As a specialized manufacturer of road traffic lights compliant with China GB14887-2011 standards, and international standards such as CE, RoHS, EN12368, and ISO9001.Can meet the highest global standards for safety, durability, and environmental compliance.
Starlight Road provides durable, cost-effective signaling products for urban intersections, pedestrian crossings and traffic control systems.It is suitable for cross, T and other intersections, controlled by traffic signal controller, to guide vehicles and pedestrians to pass safely and orderly. Functional categories include: "full ball signal light", "arrow light",”U-turn lights” "pedestrian light", "countdown light", "Bicycle-shaped lights" and "lane control signal light", 4G IoT Cloud Platform based Road Alert Tech Highway Adverse Weather Detection, Guidance and Alert System，Multifunctional Road Pre-Warning System，Radar Speed Signs，AI Smart Crosswalk Systems，etc. It is an important tool to strengthen the road traffic management, reduce the occurrence of traffic accidents, improve the efficiency of road use and the traffic conditions.
Our enterprise is ISO 9001:2015 certified. Starlight Road's product delivers great results that inspire confidence in our customers all through the guaranteed five-year warranty.
Vast experience in the field, knowledge of various standards, attentive pre- and post-sale service, and extended local technical assistance in specific areas.
As a traffic signal company, we offer a quick response to your requests and orders, quick delivery, automated SMT/DIP equipment, and effective assembly production lines. Delivery time of our traffic signals products is within 5 days.
In 2021, we launched a 4G IoT Cloud Platform to enable remote management and predictive maintenance for all connected devices. By June 2024, this platform will fully support real-time monitoring of our entire product ecosystem.
4. Starlight Road traffic signal light manufacturer integrates cutting-edge technology into every product, ensuring reliable and efficient traffic solutions. Such as we revolutionary used Embedded base for LED Crosswalk Block / Road Studs,make out them can hold 50-80 ton trucks.
Our solutions are tailored to meet specific traffic management needs, providing flexibility and adaptability.
