Smart Pedestrian Crosswalk Solution I
Shenzhen Starlight Road Technology Co., Ltd.
November 2018
Overview
At busy pedestrian crossings, factors like poor weather, low visibility, failing markings, and driver inattention often lead to safety risks. Our Smart Pedestrian Crosswalk System addresses these challenges by integrating advanced technology with traffic signals to highlight crossing pedestrians, alert drivers to yield, and enhance safety. This solution promotes courteous driving and ensures efficient traffic flow.
The Challenge
Traditional crosswalks and signal systems have limitations:
Crosswalk Markings: Prone to wear and low nighttime visibility, reducing driver awareness.
Traffic Signals: Effective for safety but often cause fixed delays, leading to congestion on busy roads.
Pedestrians, as vulnerable road users, face significant risks at crossings. Balancing pedestrian safety with vehicular efficiency is a critical need for modern traffic management.

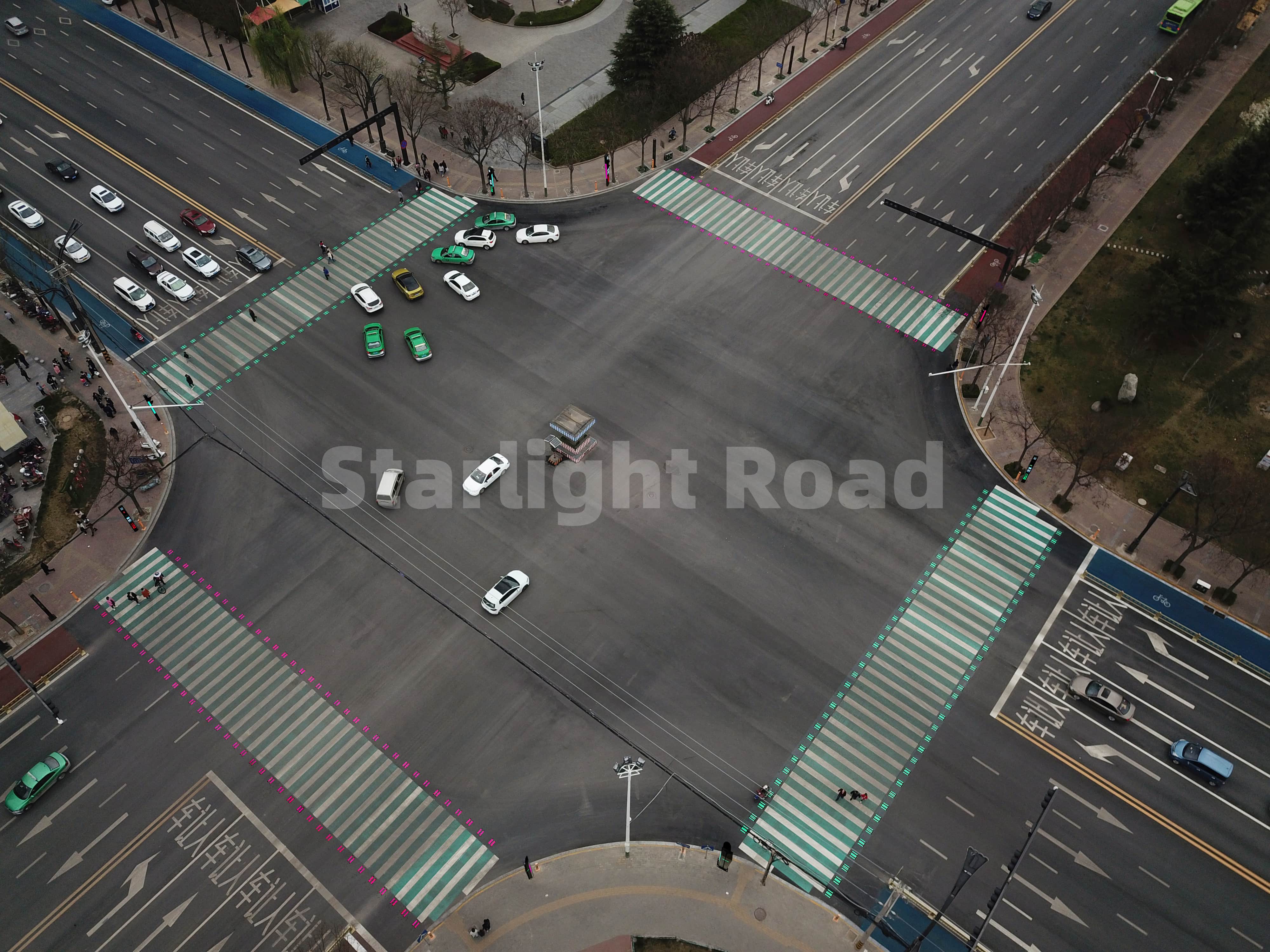

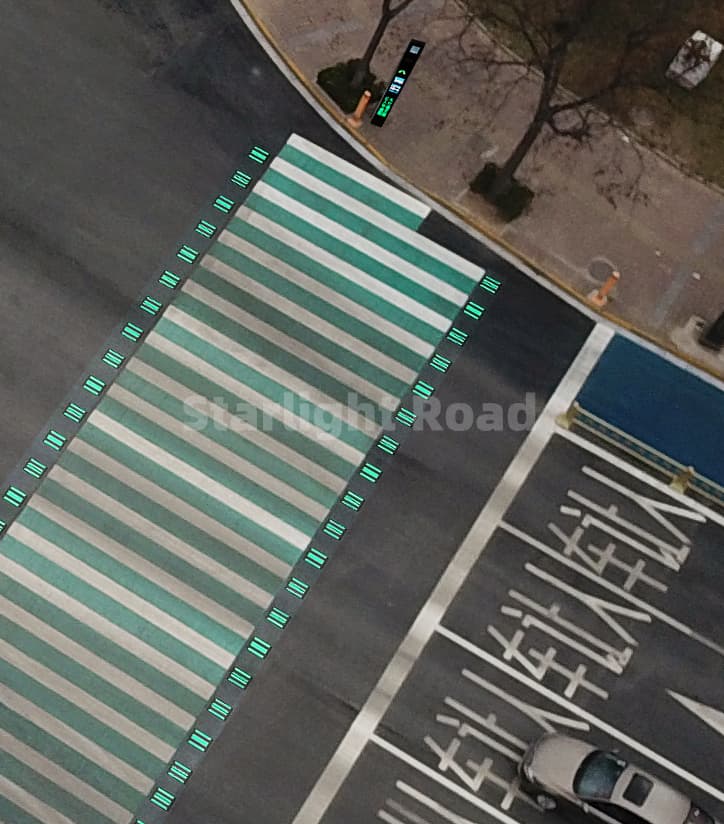

Our Solution
Starlight Road Technology’s Smart Pedestrian Crosswalk System will be deployed at Each junction features newly installed traffic signals with synchronized control, delivering a seamless, safe, and efficient crossing experience.
System Components

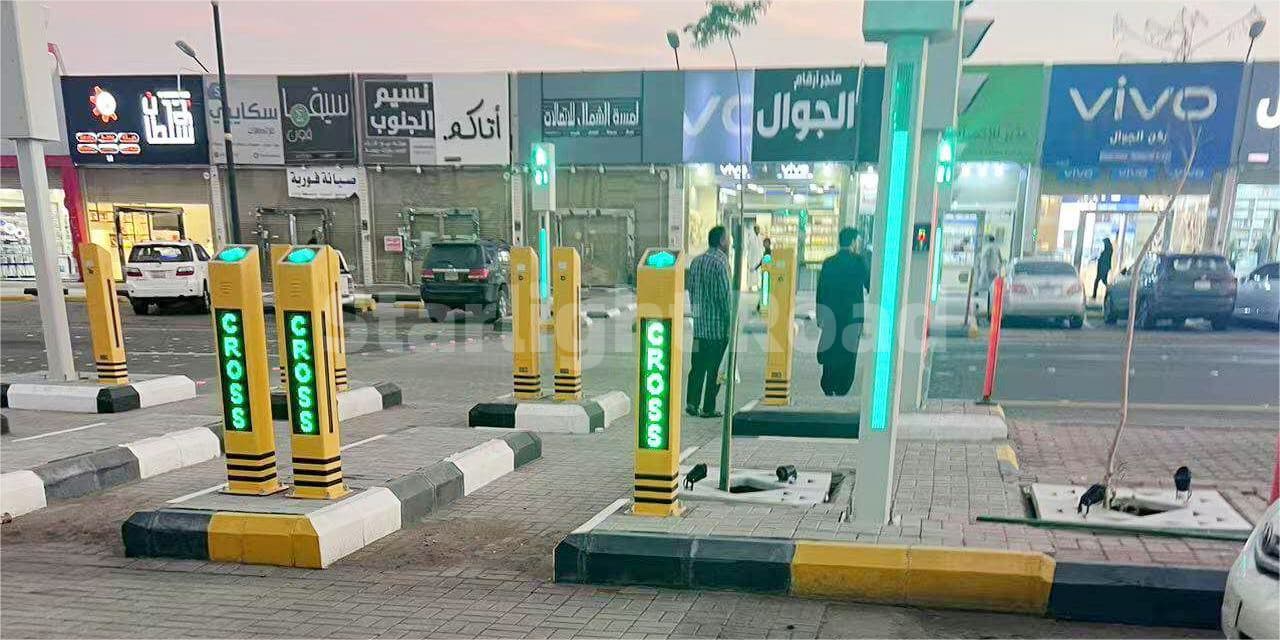

Smart Crosswalk Alert Beacons: Two pairs per direction, offering dual-sided signals and digital countdowns.with Infrared beam detect when red-light phase, issuing audible warnings to promote compliance.
-
Power: AC220V ±20%
-
Display: Dual-sided red full-screen/green arrow, P10 LED screen
-
Features: Voice alerts, 9-second countdown, infrared violation detection
-
Protection: IP53, -30°C to +65°C
-
Height: 1.2–1.3 m

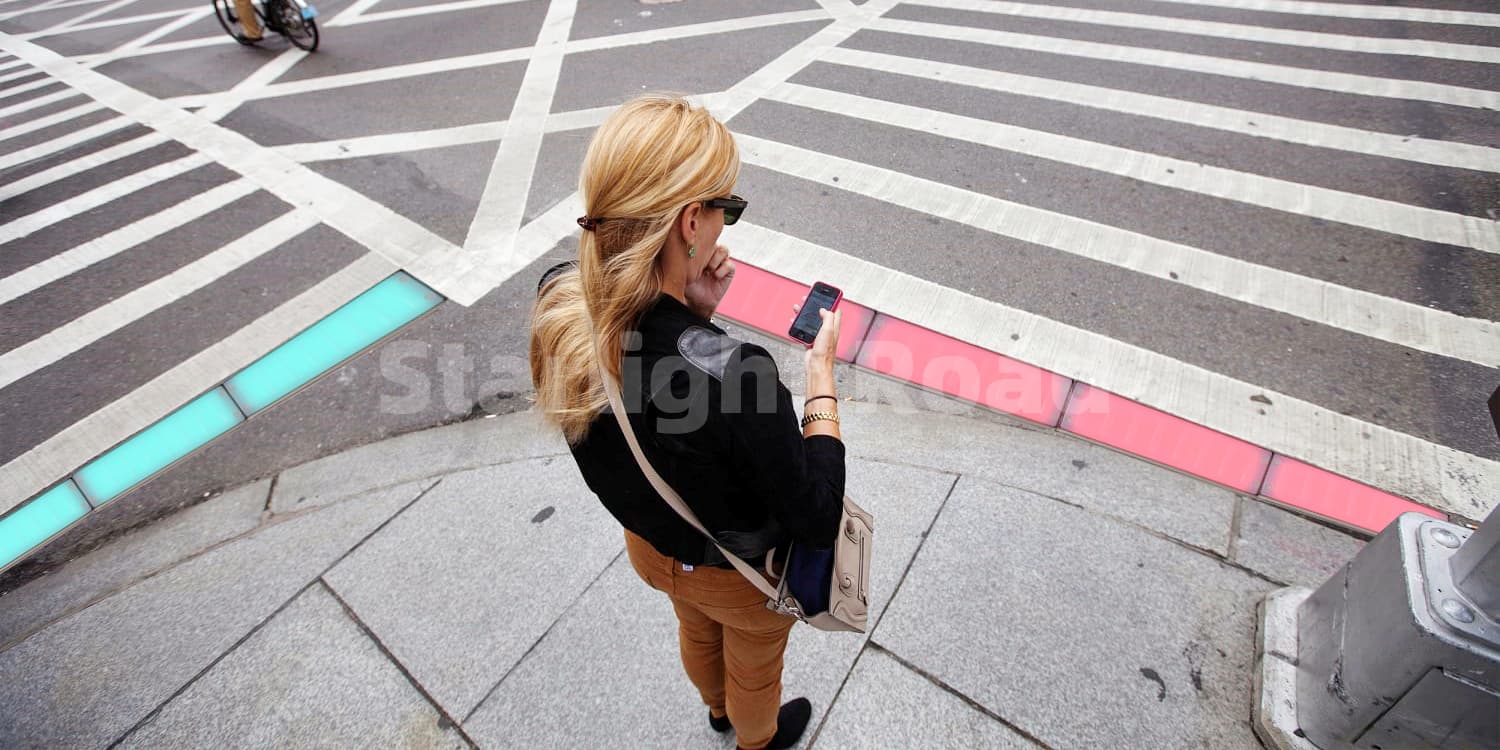

Pavement-Embedded Signal Blocks: Ten per direction, Even while walking with your head down or engrossed in your phone, you can still notice the ground-level traffic signals.
-
Power: DC24V, Red: <13W/m; Green: <16W/m
-
LEDs: Red: 256/m; Green: 240/m
-
Protection: IP68, ≥80T compression resistance
-
Dimensions: 1055 x 112 x 111 mm
-
Compliance: GB14887-2011

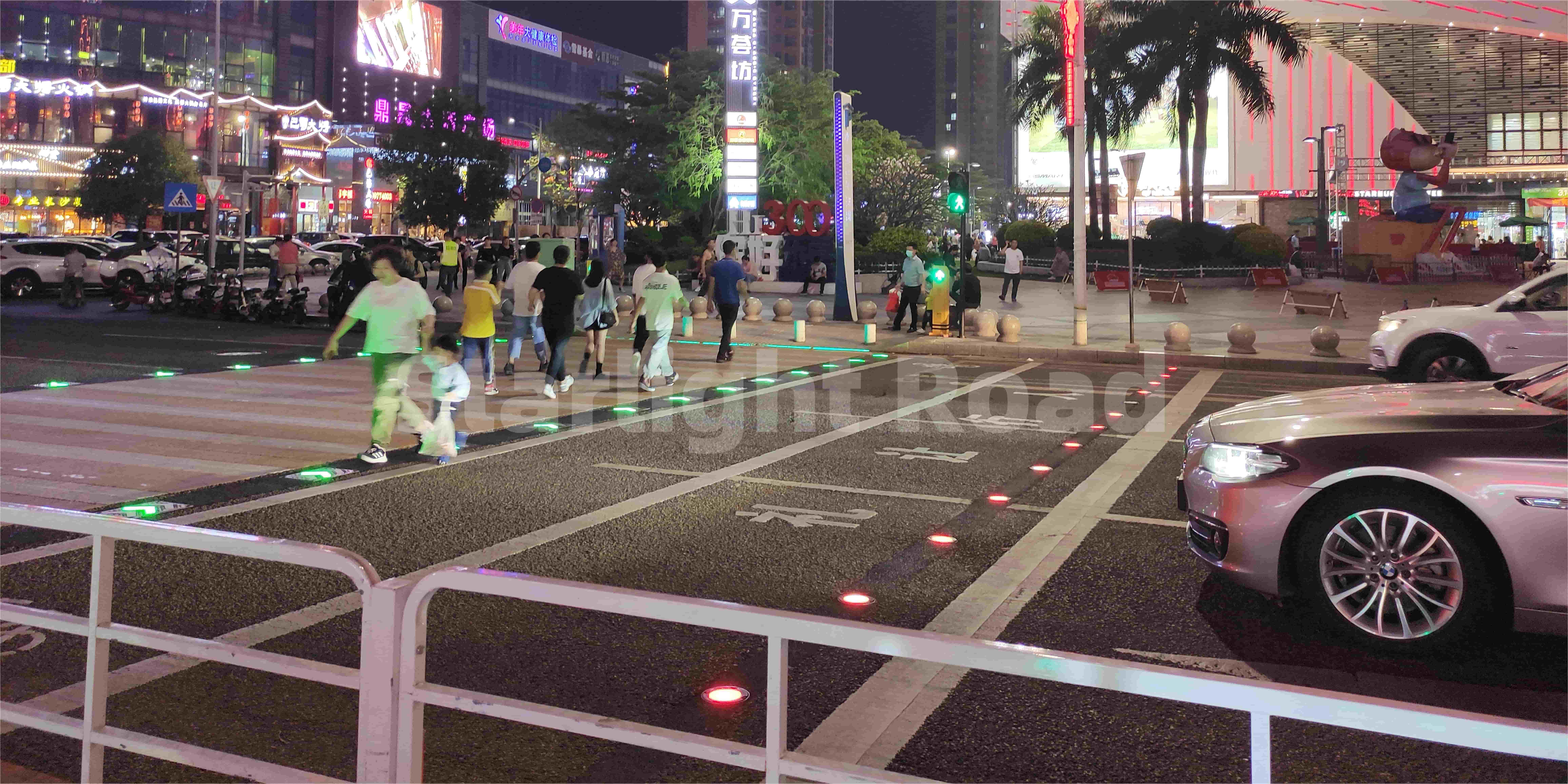

Crosswalk-Embedded LED Road Studs: Six per lane at stop lines, with side-emitting lights as Highlight Crosswalk Marking on Road
-
Power: DC24V, ≤2W (dual-zone)
-
LEDs: Front: 12 red/green; Side: 12 red/yellow/green
-
Protection: IP68, ≥80T compression resistance
-
Dimensions: 156 x 69 mm, 13 mm protrusion
-
Weight: 3.5 kg

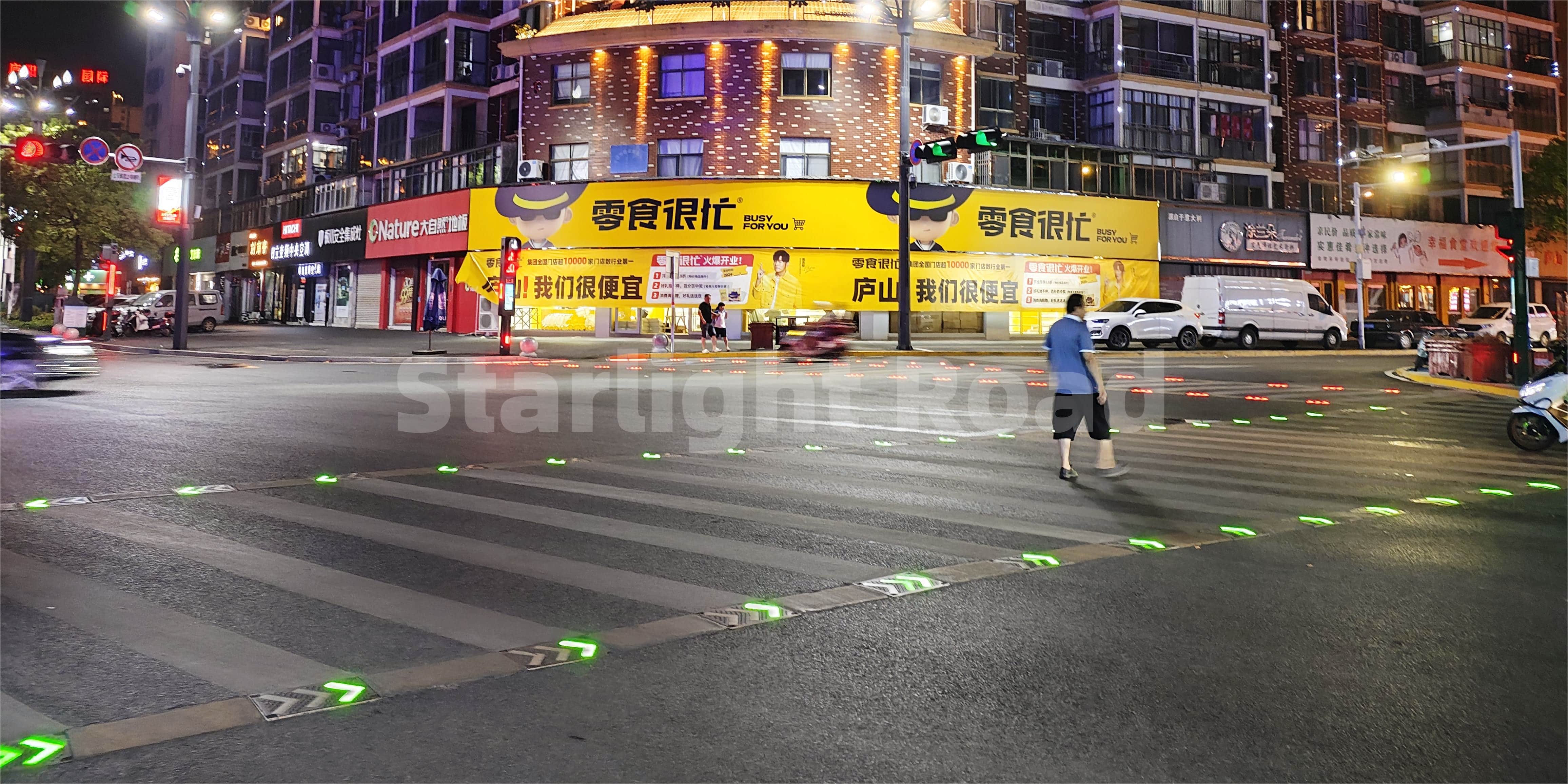

Arrow-Shaped LED Blocks: One at each line of crosswalk marking end, with dynamic arrow displays. Guide Pedestrians “Keep to the Right/ Left!” on the Zebra crossing.
-
Power: DC24V, <8VA
-
LEDs: Red: 36; Green: 28 per arrow
-
Protection: IP68, ≥80T compression resistance
-
Dimensions: 46 x 257 mm light area
-
Weight: 25 kg

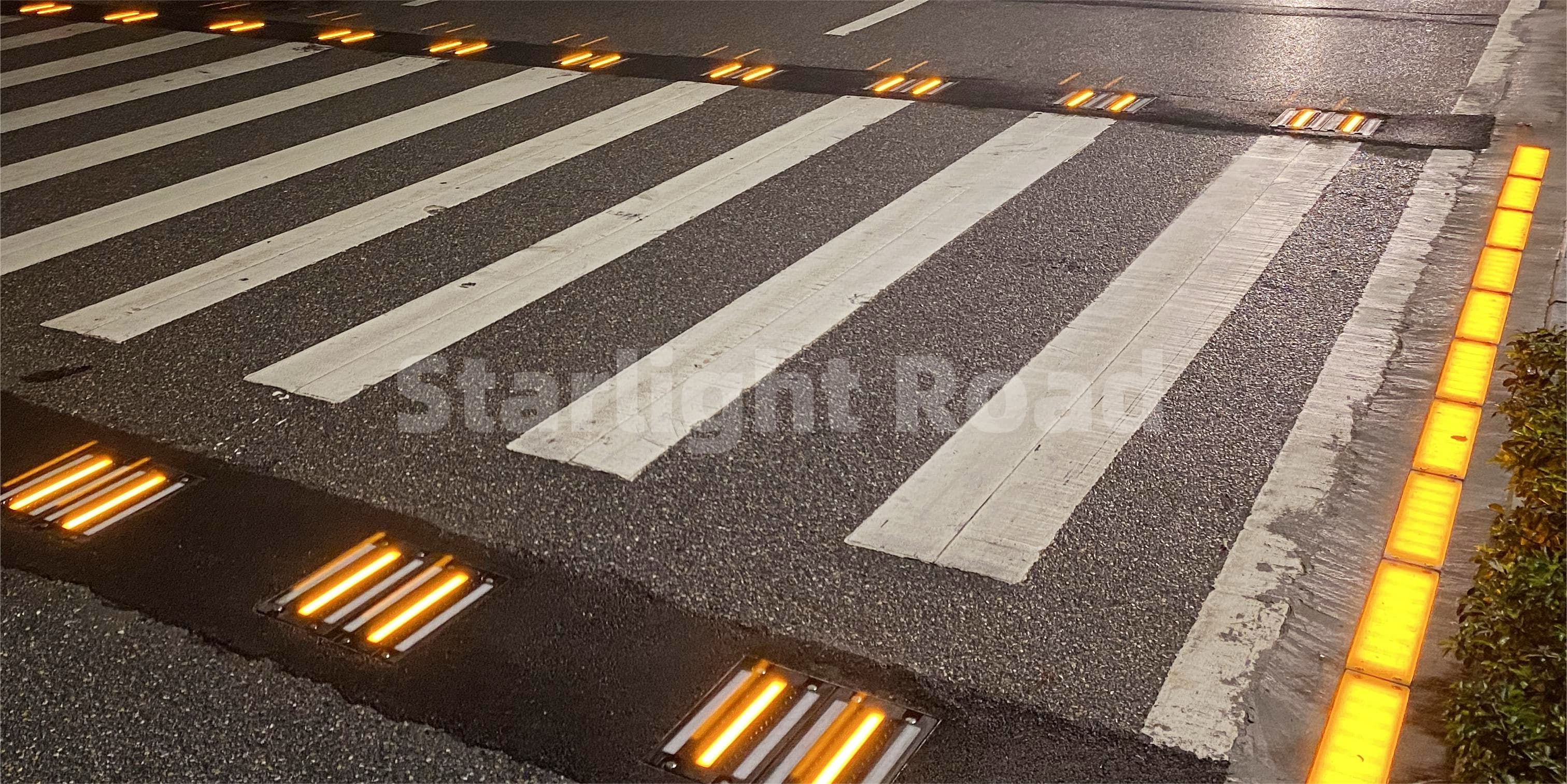

Stripe-Shaped LED Blocks: One at each line of crosswalk marking end, with dynamic arrow displays. Guide Pedestrians “Keep to the Right/ Left!” on the Zebra crossing.
-
Power: DC24V, <8VA
-
LEDs: Red: 36; Green: 28 per arrow
-
Protection: IP68, ≥80T compression resistance
-
Dimensions: 46 x 257 mm light area
-
Weight: 25 kg
Benefits
Enhanced Safety: Multimodal alerts reduce pedestrian-vehicle conflicts.
Improved Efficiency: Optimized signal timing minimizes traffic delays.
Durability: Robust materials and weather-resistant designs ensure long-term performance.
User-Friendly: Intuitive displays and customizable voice prompts promote compliance.
Eco-Friendly: Energy-efficient LEDs and smart sensors reduce power consumption.
Why Choose Starlight Road Technology?
Shenzhen Starlight Road Technology Co., Ltd. is a leader in innovative traffic solutions. Our Smart Pedestrian Crosswalk System complies with international standards, including GB14887-2011, and is designed to create safer, smarter cities. Contact us to learn how we can transform your roadways.
